Open Stringer Saw

Triad’s Open Stringer Saw (OSS) was designed to increase productivity and cut a perfect stringer every time. The OSS is powered by two soft start motors and uses two 30” x 80 tooth carbide tipped blades. The OSS is PC controlled and has automatic indexing and cutting. An in-feed and out-feed roller conveyor comes as standard equipment with the unit.

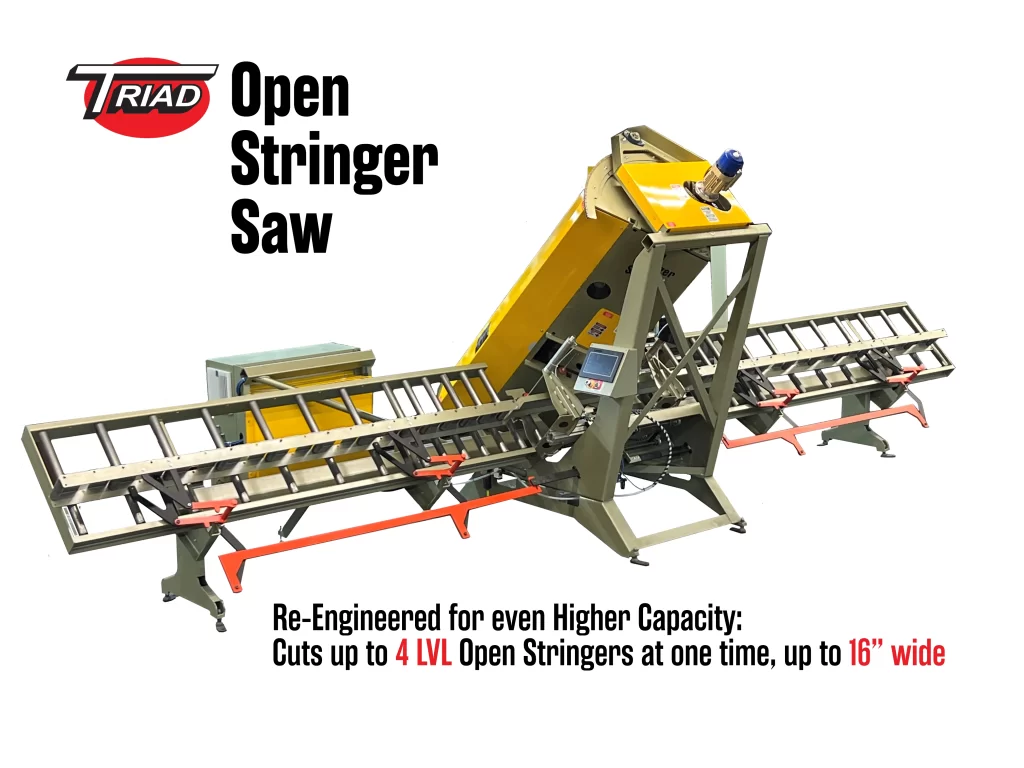

Updated Open Stringer Saw 2025

Specifications

  • 240 VAC 3 phase, 60 Amps
  • 100 PSI air pressure, 2 CFM
  • Two 30” carbide saw blades
  • One 10 HP motor per blade, 1750 RPM
  • Vee-Belt drive 1:1
  • Throat to accommodate stringer pack up to 7” thick x 18” deep
  • Stringer Angle from 25° to 45°
  • 12” Maximum Tread cut
  • Automatic homing
  • Servo controlled blade angle, Index and Fence position
  • Variable Feed-rate
  • Linear Bearings on saw and index stroke
  • Touch Screen interface
  • PLC control
  • 10’ infeed and outfeed conveyor attached to main frame
  • Inclined surface for stringer support
  • Pneumatic stringer clamps and index clamps
  • Internal Block clamp to hold waste until the blades clear
  • Metal chute for block removal
*Specifications subject to change without notice.

Video Demonstration of Open Stringer Saw

Capabilities

  • Cut up to four separate 2″ x 10″ or 2″ x 12″ stringers at one time.
  • Accommodates stringer angles from 25 degrees to 45 degrees.

Options

  • Block Conveyor
