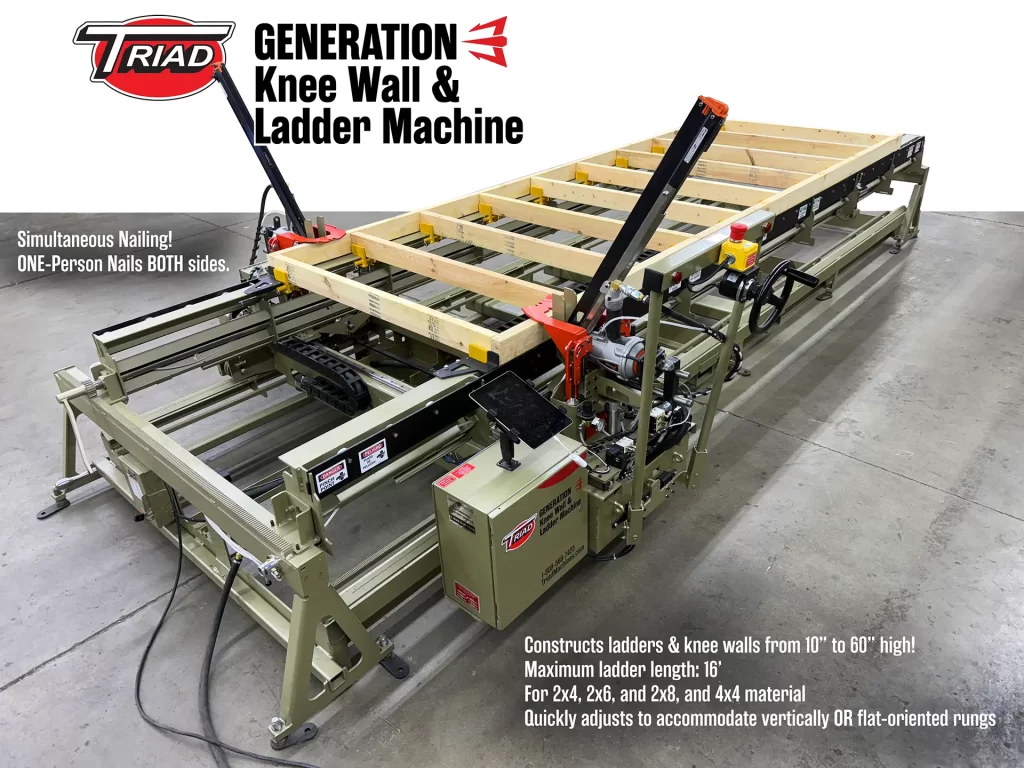

Knee Wall Ladder Machine

One Machine (& Just One Person) Can Do it ALL! Triad has redefined the Knee Wall & Ladder Machine making it more versatile and also able to build knee walls up to 60″ high! (Also Soffit Box capable.) Best of all, it will pay for itself by turning the job into a one-person operation with it’s simultaneous nailing!

Whether you want to build with 2×4, 2×6, 2×8 this machine can do the job. And it can quickly be configured to do either vertically oriented or flat-oriented rungs using 2×4, 4×4, or 4×6 material.

Knee Wall  Ladder Machine

Specifications

  • 120 VAC, single phase, 10 amps
  • 100 PSI, 2 CFM air

*Specifications subject to change without notice.

Capabilities

  • Tools adjust automatically with the table
  • Tool gantry features automatic return
  • Ladder profiles can be saved via the touchscreen.
  • Ladder profiles can be replayed to fasten similar ladders automatically.
  • Nailing gantry clamps both horizontally and vertically
  • Air-actuated pop-up rollers for easy unloading
  • PLC, Servo, Hand-Crank, Touchscreen & push-button controls
  • Adjustable nail spacing allows up to 3 nails in a 2×4
  • Table width is crank-adjustable
  • Rack and Pinion design assures you parallel tops and square construction
